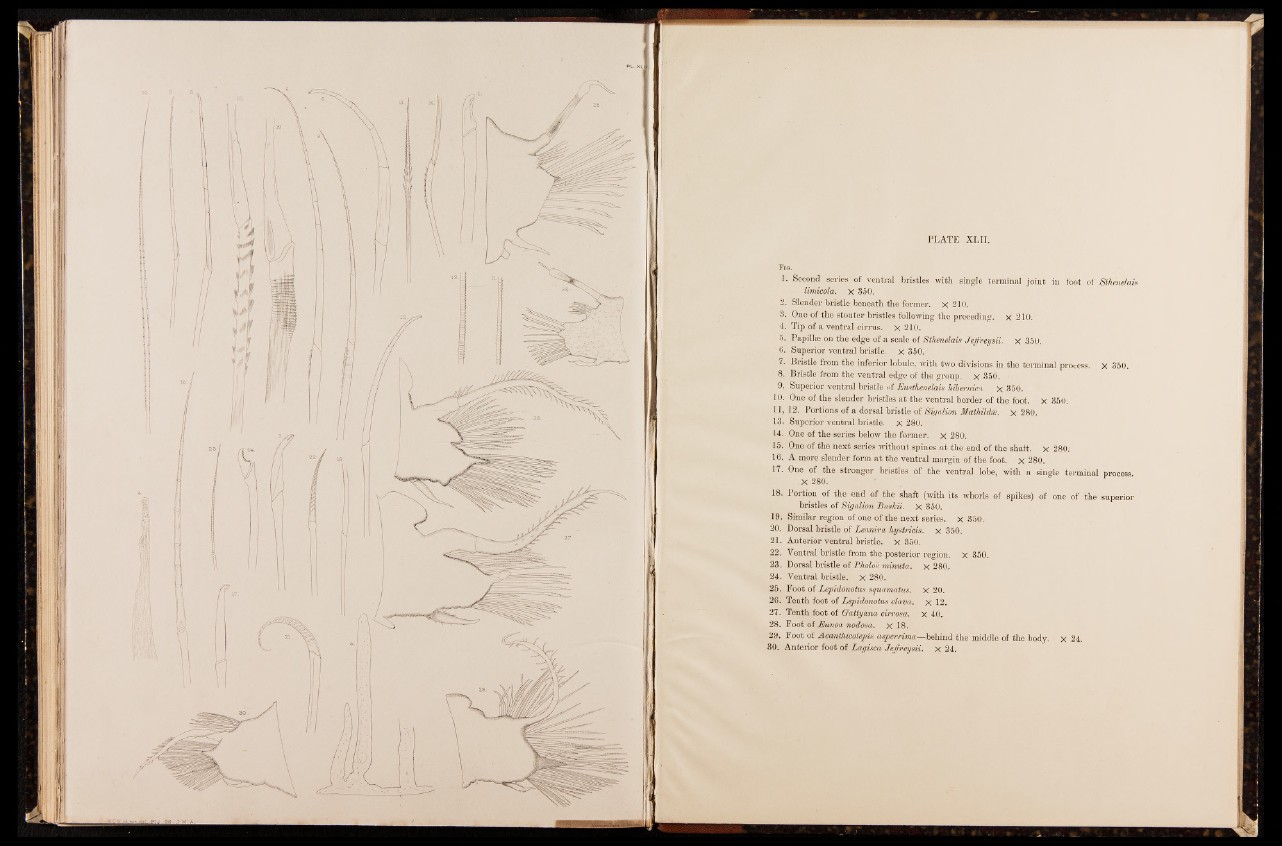

PLATE XLII.
F ig .
1. Second series of ventral bristles with single terminal joint in foot of Sthenelais
limicola. x 350.
'2. Slender bristle beneath the former. X 210.
3. One of the stouter bristles following the preceding, x 210.
4. Tip of a ventral cirrus, x 210.
5. Papillas on the edge of a scale of Sthenelais Jeffreysii. x 350.
6. Superior ventral bristle, x 350.
7. Bristle from the inferior lobule, with two divisions in the terminal process. X 350.
8. Bristle from the ventral edge of the group, x 350. ■
9. Superior ventral bristle of Eusthenelais hibernica, x 350.
10. One of the slender bristles at the ventral border of the foot. X 350.
11, 12. Portions of a dorsal bristle of Sigalion Mathilda, x 280.
13. Superior ventral bristle. X 280.
14. One of the series below the former, x 280.
15. One of the next series without spines at the end of the shaft, x 280.'
16. A more slender form at the ventral margin of the foot. X 280.
17. One of the stronger bristles of the ventral lobe, with a single terminal process.
X 280.
18. Portion of the end of the shaft (with its whorls of spikes) of one of the superior
bristles of Sigalion Buskii. X 350.
19. Similar region of one of the next series, x 350.
20. Dorsal bristle of Leanira hystricis. x 350.
21. Anterior ventral bristle. X 350.
22. Ventral bristle from the posterior region. X. 350.
23. Dorsal bristle of Pholo'e minuta. X 280.
24. Ventral bristle. X 280.
25. Foot of Lepidonotus squamatus. X 20.
26. Tenth foot of Lepidonotus clava. x 12.
27. Tenth foot of Gattyana cirrosa. x 40.
28. Foot of Eunoa nodosa, x 18.
29. Foot of Acanthicolepis asperrima—behind the middle of the body, x 24.
30. Anterior foot of Lagisca Jeffreysii. X 24.
